AFE VFFS BAGGER, 14 Heads Multihead Weigher, Z-Type Bucket Conveyor, Supporting Platform, Finished Products Conveyor

MODEL: AFEVFF70

YEAR: 2022

CONDITION: Like New

Vertical packing machine

(with 2 sets of bag formers)

Capacity 10-70 bags/min, depending on the scaling equipment, materials & packaging film’ material.

Accuracy ≤±1.5%，depending on the measuring equipment & materials

Bag size (L)80-300mm (W)60-200mm

Film width Max 420mm

Bag type Pillow bag, gusseted bag, vacuum bag

Filling range Max 1300ml

Total powder 5.495KW

220V/3phase/60Hz

Total height 3.761m

Features：

a.      High speed and efficiency.

b.      Famous brand PLC control system, large touch screen, convenient to operate;

c.       Automatic Servo film pulling system, Pneumatic horizontal sealing.

d.      Minimizes the loss with a complete automatic warning protection function;

e.      Complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.

f.        The machine can make pillow-type bags and standing bags according to the customer’s requirements.

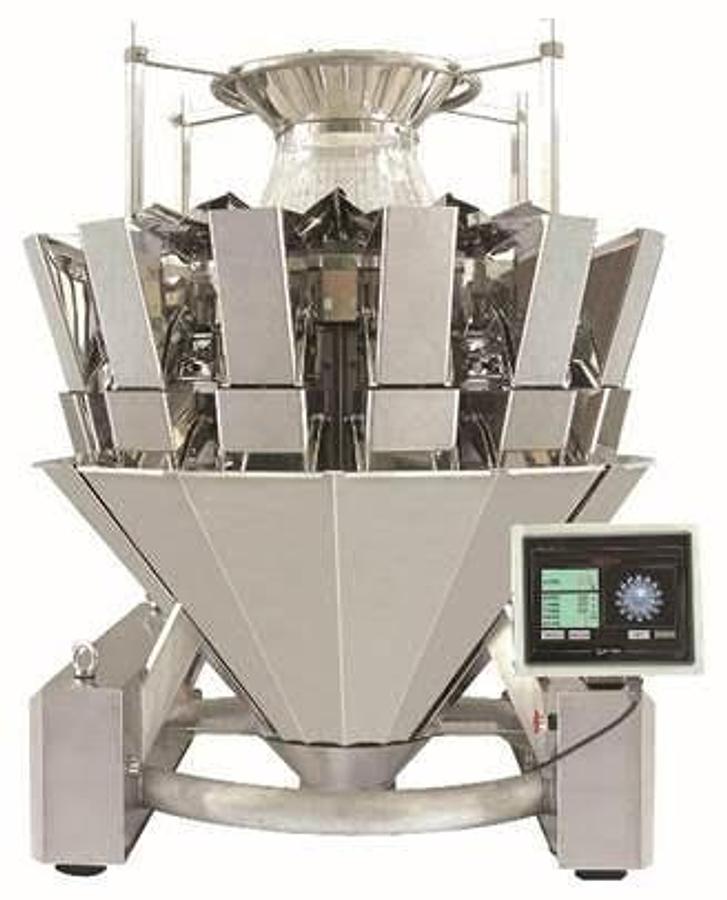

 14 Heads Multihead Weigher

Load cell infeed detection, more compatible for a harsh working environment (dusty).

b.        Automatic frequency control function to improve the packing rate.

c.         Independently adjustable amplitude is more user friendly.

d.        Staggered dumping mechanism to prevent material blockage.

e.         Multi-language operating interface.

f.          Mouse, USB and SD card compatible 7” touch screen

g.         High-grade (IP65) waterproof and dustproof design, more durable in wet and dusty working environment.

h.        Instant display of the weight inside each hopper.

i.           Application Range:

Cereal, pasta, pet food, frozen food (frozen dumping), all type of granular products (peanuts, pistachio), confectionary, fresh products (lettuce leaf), bakery food (biscuits). Non-food applications (screws, bolts).

Plain surface/dimple surface

304 stainless steel

Bucket capacity 2.5L

Max single dump 3L

10 inch touch screen

220V/50HZ(60HZ)

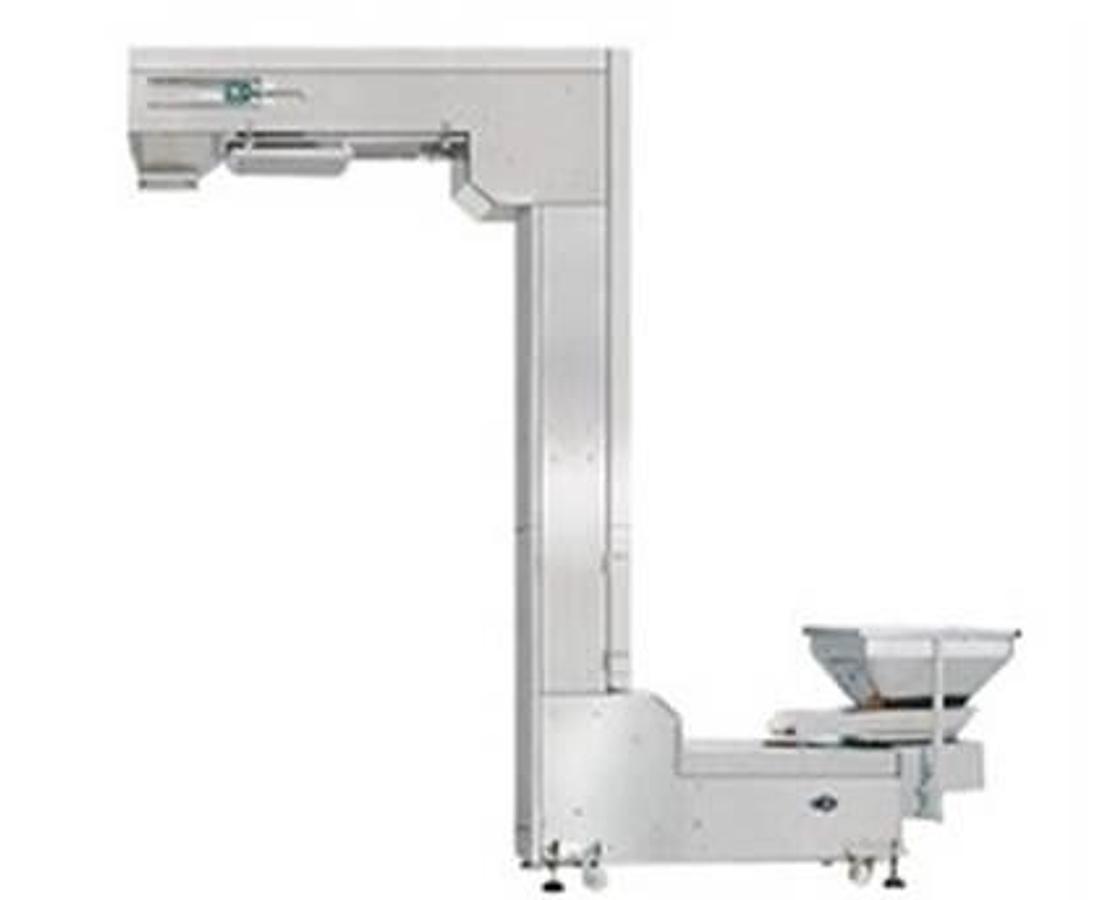

Z-Type Bucket Conveyor

Features:

The conveyor is applicable for vertical lifting of different products like chips, cookies, popcorn etc..  The Bucket elevator hoppers are driven by the chains. It’s used for vertical feeding of small block materials. It is good for large number of products conveying and it can be designed to be tall. Its height can be made according to each project. The frame of the conveyor is stainless steel. All the contact parts to the food are stainless steel and the buckets are food grade material.

The chains are made of stainless steel. When you need to clean the conveyor it is very easy to remove them from the conveyor chain.

Vibration type feeder features:

The parts which contact with food are made of 304 stainless steel; supported with a non-grade adjuster to regulate the feeding quantity. It sends the material from the storage to the material conveyor through vibration. The bucket has a capacity of 0.5 cubic meters

The highness of lifting

3m-10m

The max. feeding capacity

2m³/hour

Speed of lifting

0-17m/minute

Lifting quantity

5.5cubic meter/hour

Power

750W

Voltage

220v

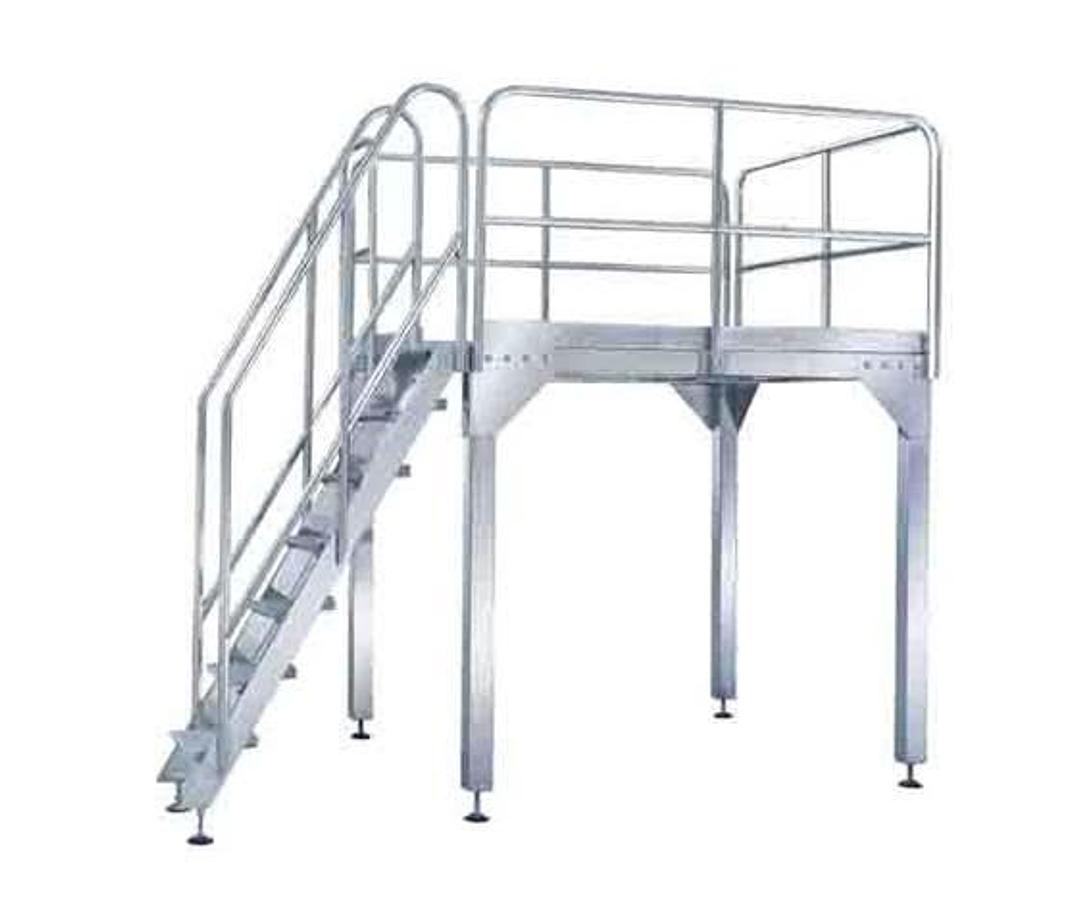

 Supporting Platform

The supporting platform is solid and will not affect the measurement accuracy of the combination weigher.

In addition, the floor is dimple plate, it is more secure, and it helps avoid slipping.

The size of the supporting platform is according to the type of the machines.

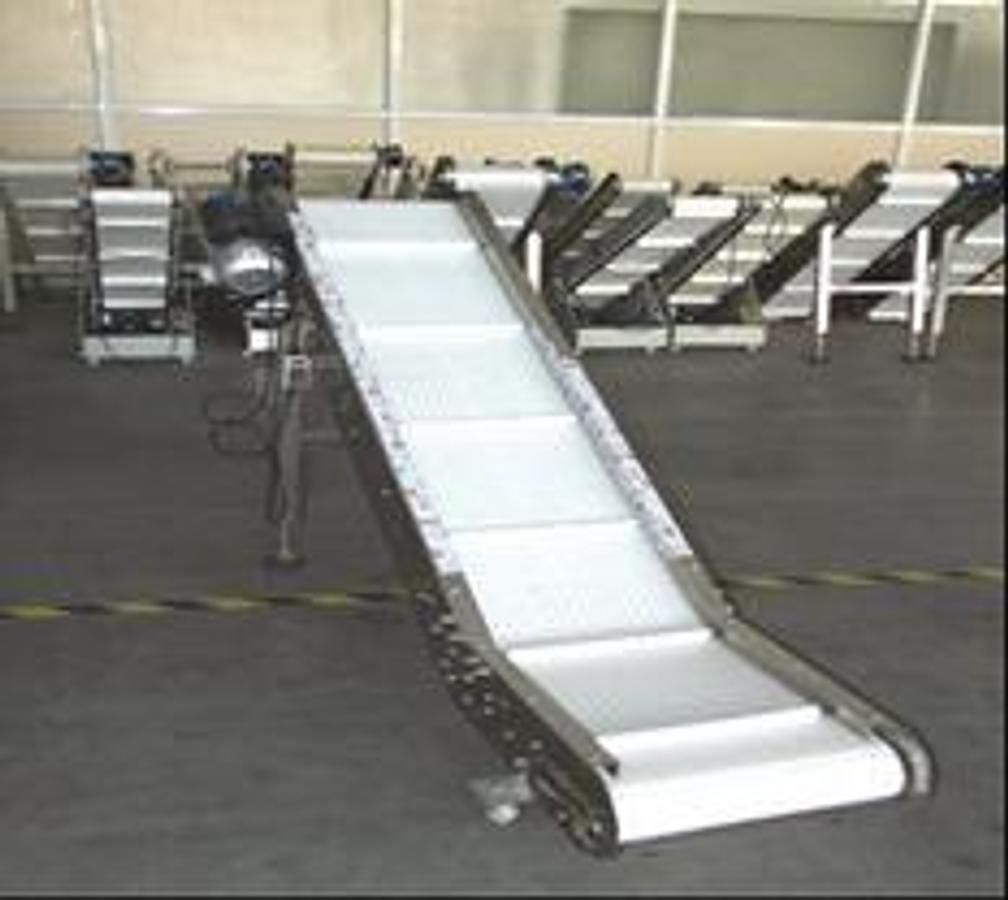

Finished Products Conveyor

Lifting height

0.88m

Lifting capacity

1 cmb/hour
