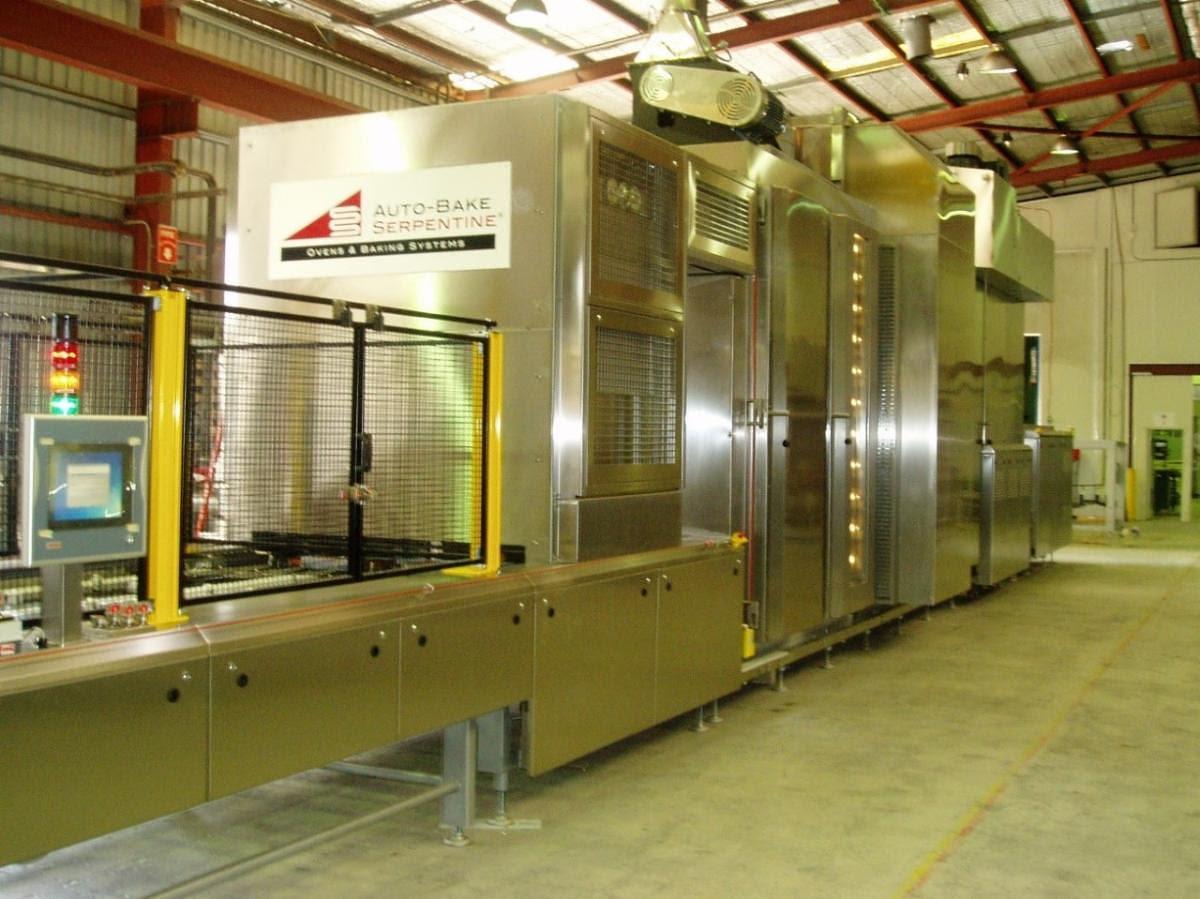

UNUSED AUTOBAKE LTS SERPENTINE™ BAKING OVEN

This item is currently SOLD. Click the quote button to find out if we have more in stock. The heart of Auto-Bake’s continuous baking solution is the Serpentine oven — a patented vertical oven process custom-built to meet specific product parameters, throughput and available space requirements, enabling cost-efficient production and rapid return on investment. The AutoBake LTS Serpentine™ System is a highly flexible and automated system designed to improve efficiency and reduce labor while producing a superior product. Direct Gas Fired 3 Convection Zones 11 Serpentine passes 310 Feet (94.43 Meters) Baking Chain Length 63.25 Feet (19.28 Meters) Overall Length 9.73 Feet (2.96 Meters)  Overall Width 17 Feet (5.1 Meters) Overall Height Baking Chamber contains 101 carriers Total carriers in baking circuit: 155 Carrier dimensions 47.24 inches (1200mm) wide x 21.65 (550mm) long on 24″ pitch Each zone can run at 0 – 140F (0 to 60C) temperature difference Three (3) AH100 Burners (Eclipse Airheat 293kW/1.0MM BTU ea) Allen Bradley CompactLogix and PowerFlex PLC Systems Beckhoff HMI Touch Screens Fitted with individual chamber (zone) humidity control Insulated and bolted stainless steel cover plates Epoxy coated frame Hinged oven doors allow for access to entire interior of oven for inspection and maintenance Two full length observation windows (1 on each side) Doors and exterior covers are 304 No. 4 Polished Stainless Steel Framework is mild steel with a zinc metal arc sprayed construction Includes: 2 Meter Conveyor System to Oven Infeed 4.5 Meter Oven Infeed Section – Including Pan Loading System Vertical Carrier Transfer Section fitted with Mesh Covers Inspection Station 3 Meter Outfeed Section – Includes pan unloading system Electrical Control Panel and System Wiring with industrial PC touch screen control panel Gas Supply – Min Supply @ 1.5 PSI/Max Supply @5 PSI, 1706 CFH Pneumatic Supply – 5CFM @ 6.9 BAR Oven has never been used Unused, still in original shipping crates (see attached pictures in crates, also one stock image) Videos: Video of actual oven in operation at factory:
