Bosch Pack 201
Bosch Pack 201
Location:Columbia, TN
or
Call 931.490.1977
Description

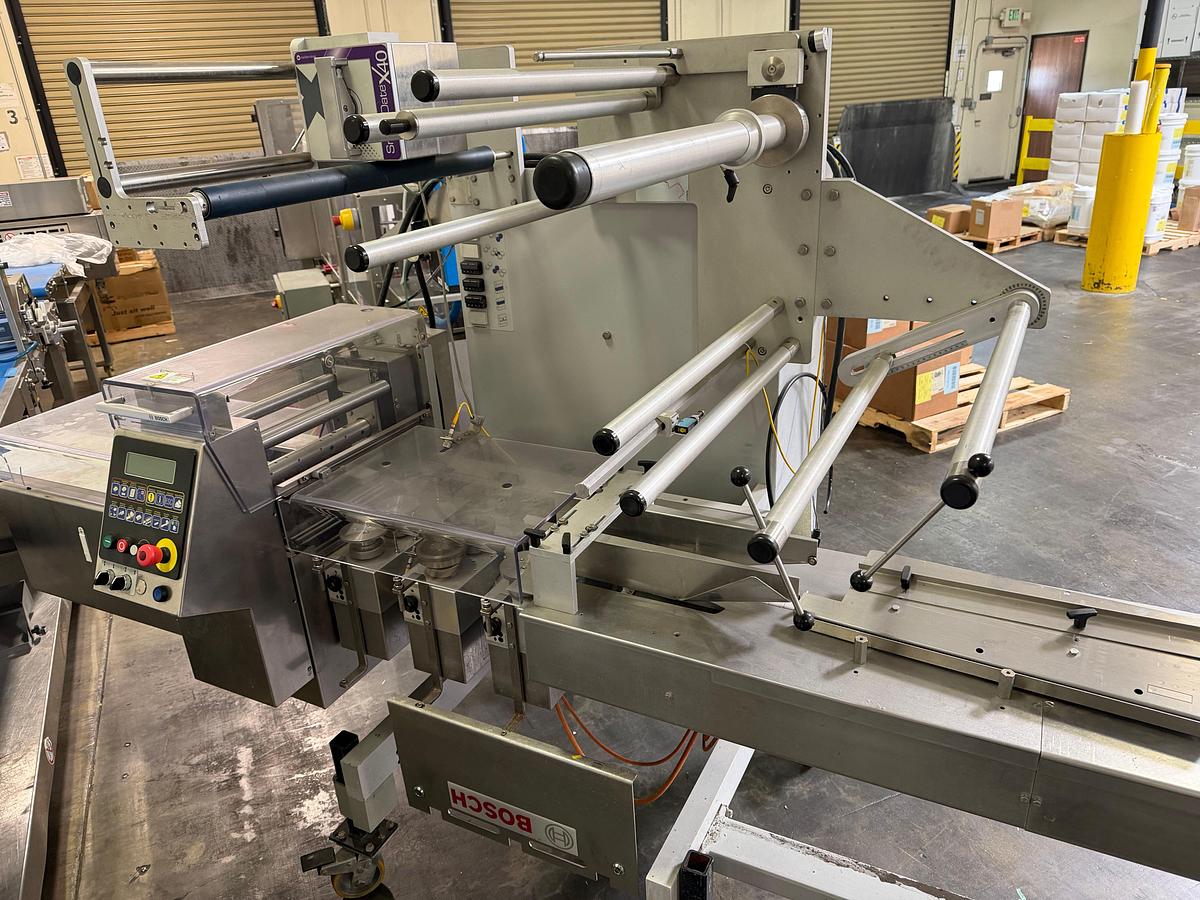

- Servo-driven horizontal form-fill-seal (HFFS) wrapper

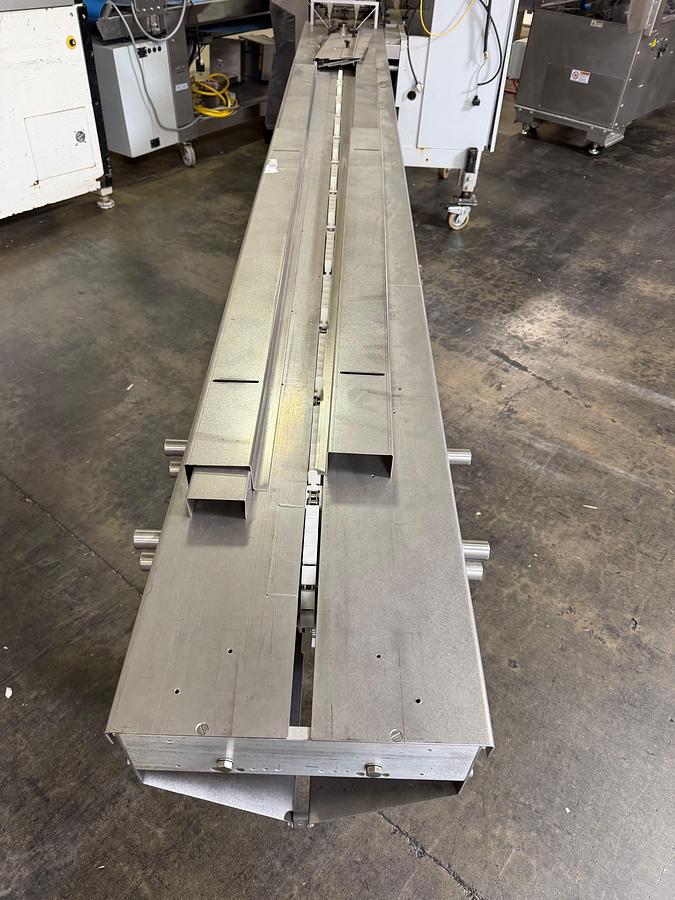

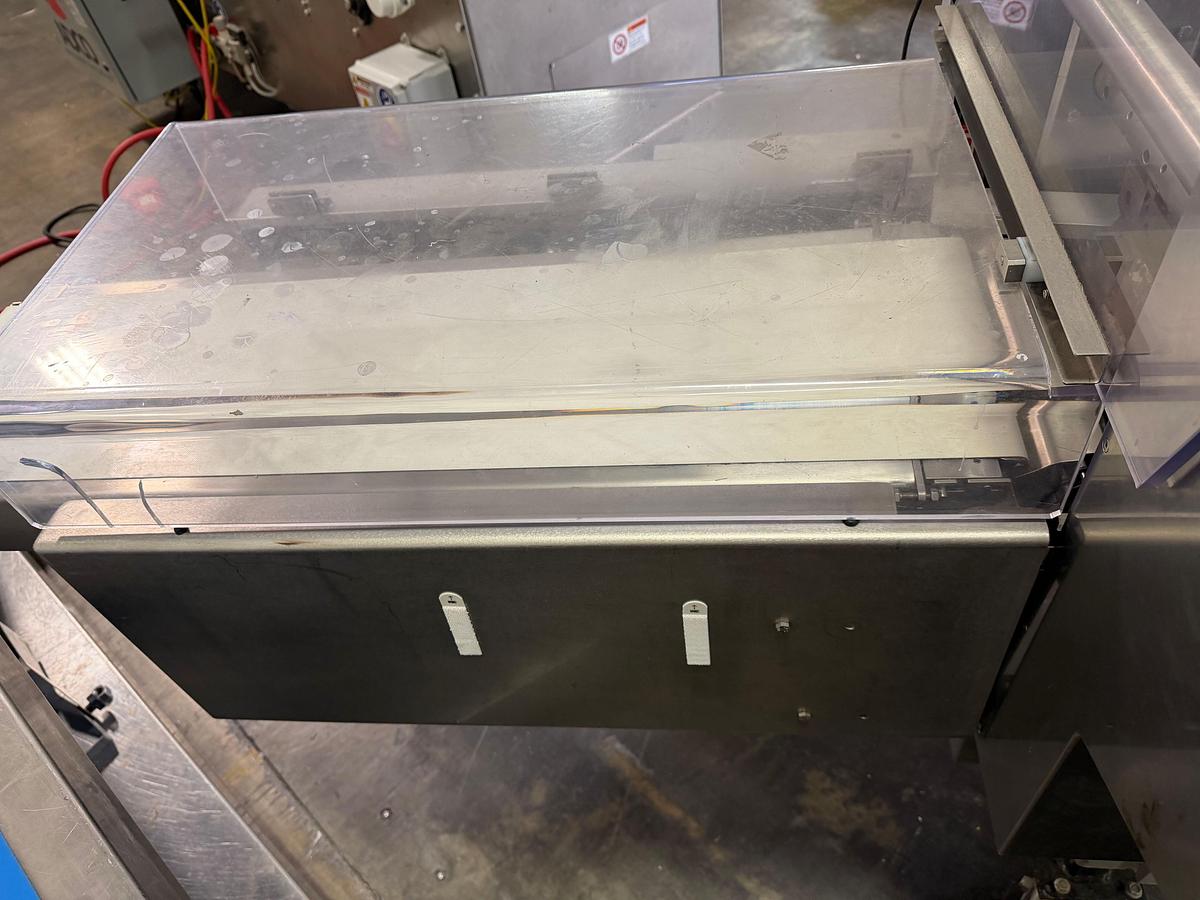

- Long lugged infeed conveyor

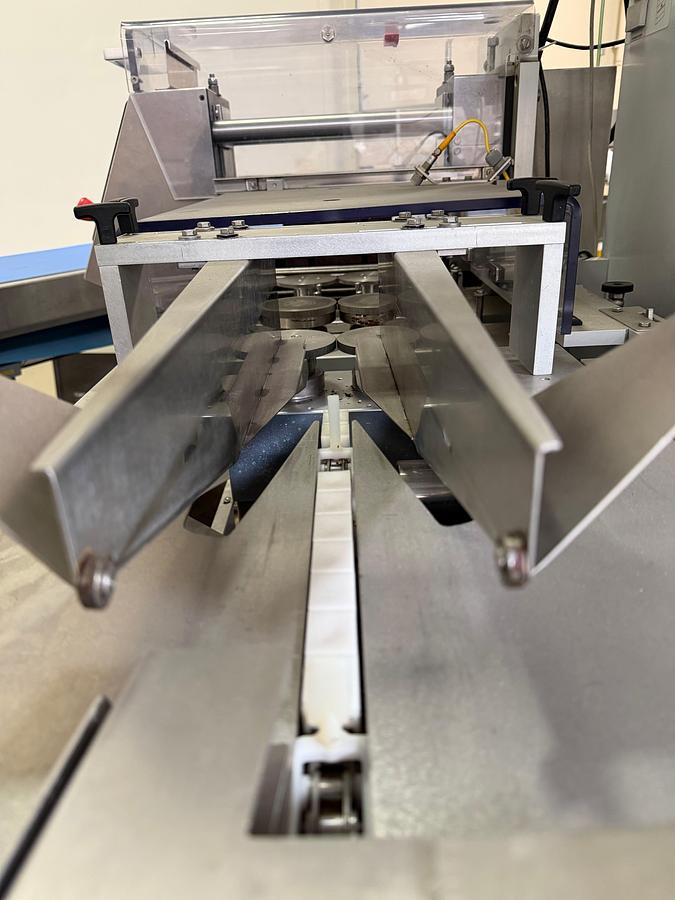

- Adjustable forming plow

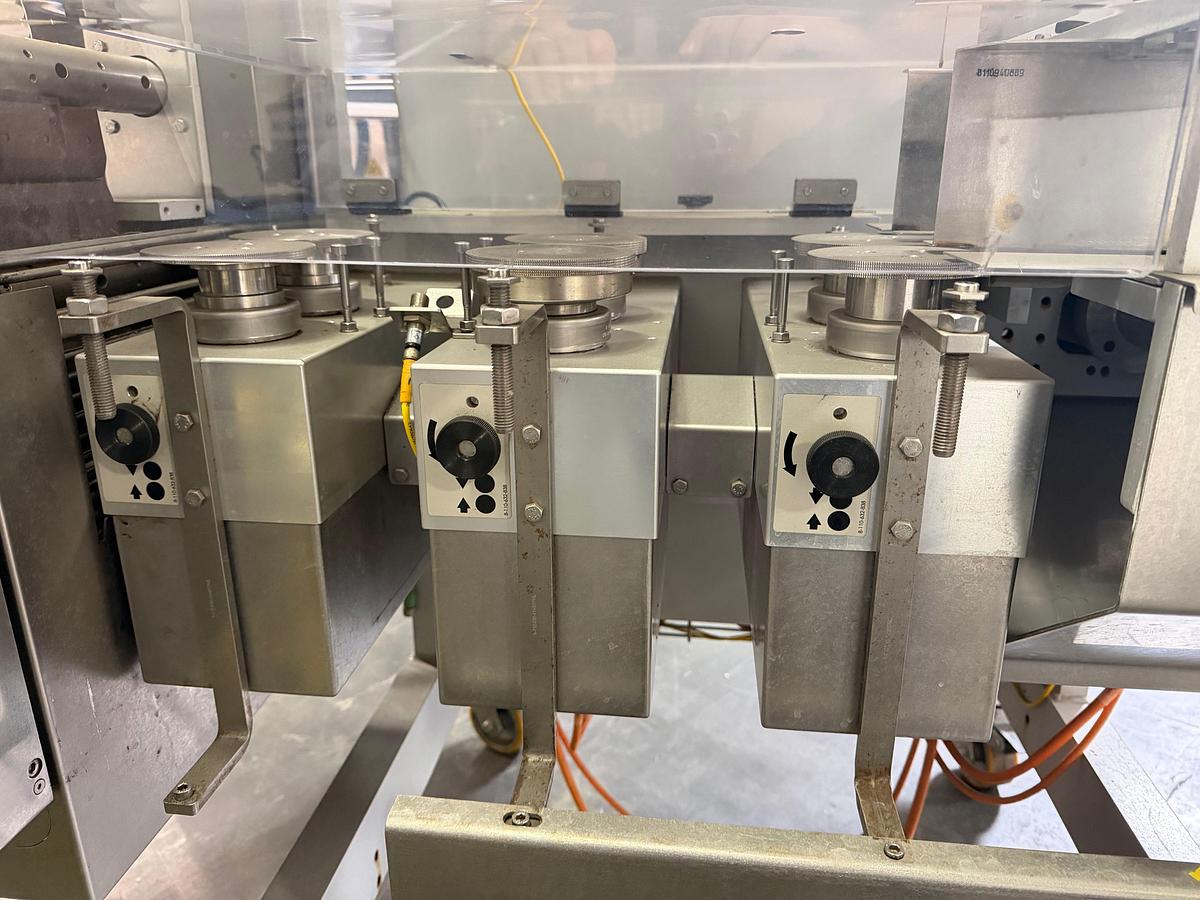

- Dual fin-wheel longitudinal sealing system with three driven knurled pairs and independent heat zones
- Rotary end-seal and cutting head

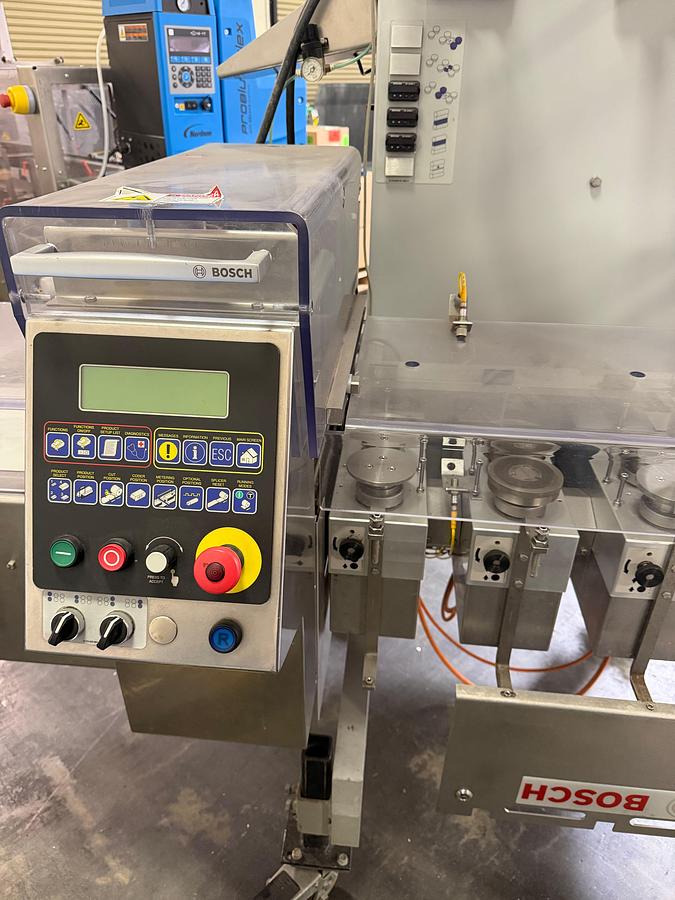

- Bosch icon-driven operator panel
- Film unwind and web path with dancer control
- Panel configured for a film splicer

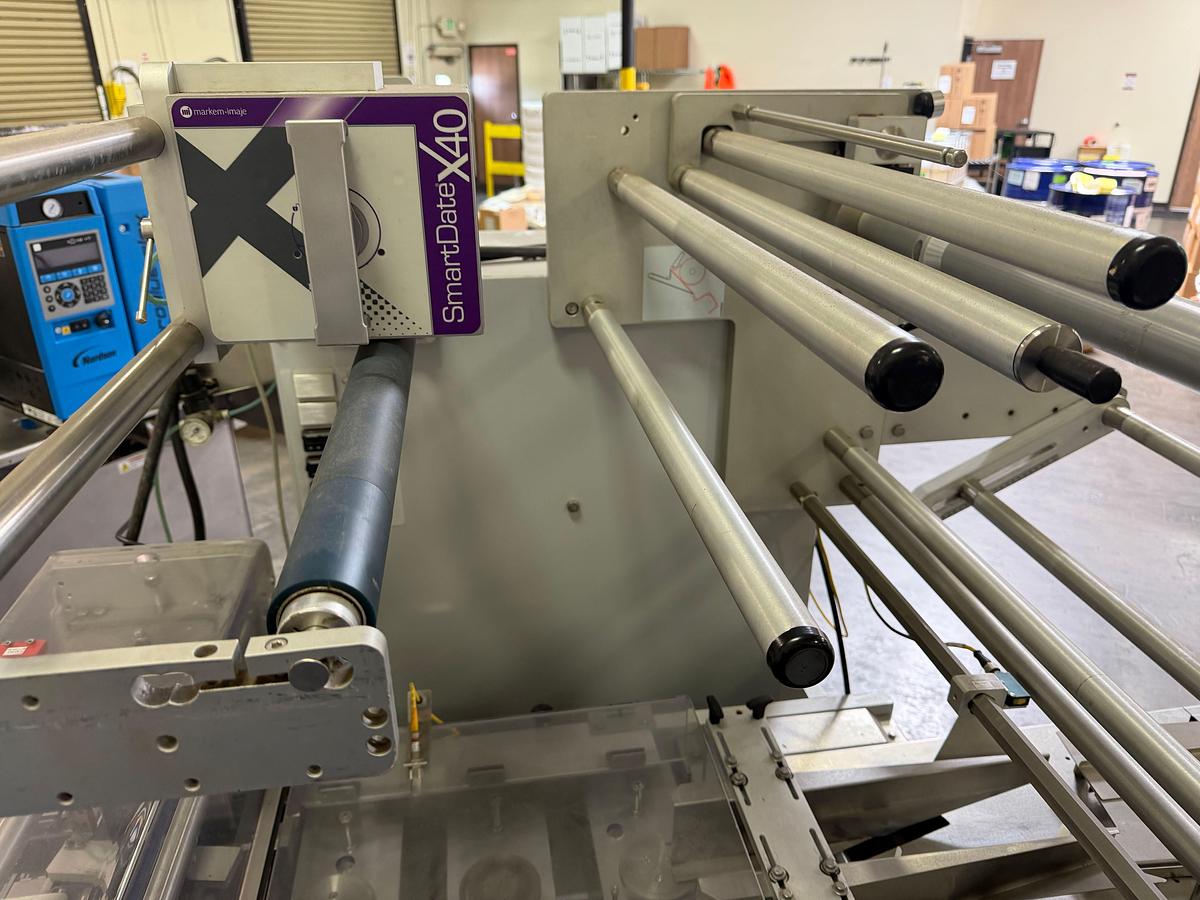

- Markem-Imaje SmartDate X40 thermal-transfer coder included
- Product size range:
- Length: 1.5"–22.2"
- Width: 0.47"–9.8"
- Height: 0.23"–4.3"
- Maximum rated speed: Up to 150 packages per minute
- Maximum film speed: 1,575 inches per minute
- Maximum film reel width: 25.6"
- Maximum film reel diameter: 15.7"

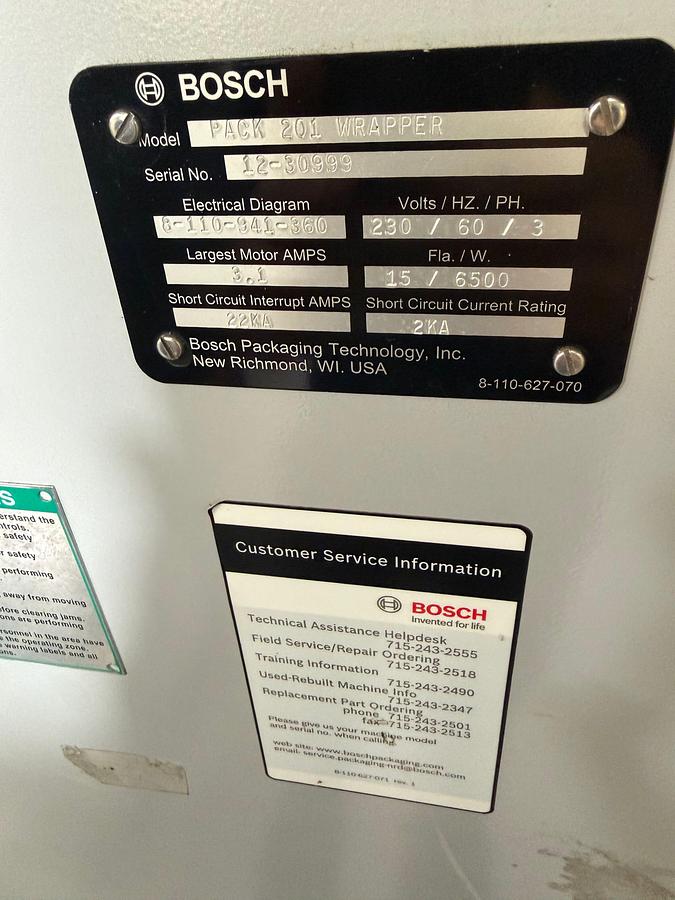

- Compressed air requirement: 6 bar / 80 psi
- Electrical requirements: 230V / 60Hz / 3-phase
- Full load amperage: 15 FLA
- Power: 6,500 W
- Largest motor: 3.1 A
- Electrical diagram: 8-110-941-360
Specifications
| Manufacturer | Bosch |
| Model | Pack 201 |
| Year | 2013 |
| Condition | Used |
| Serial Number | 12-30999 |
| Stock Number | AFE9M |
