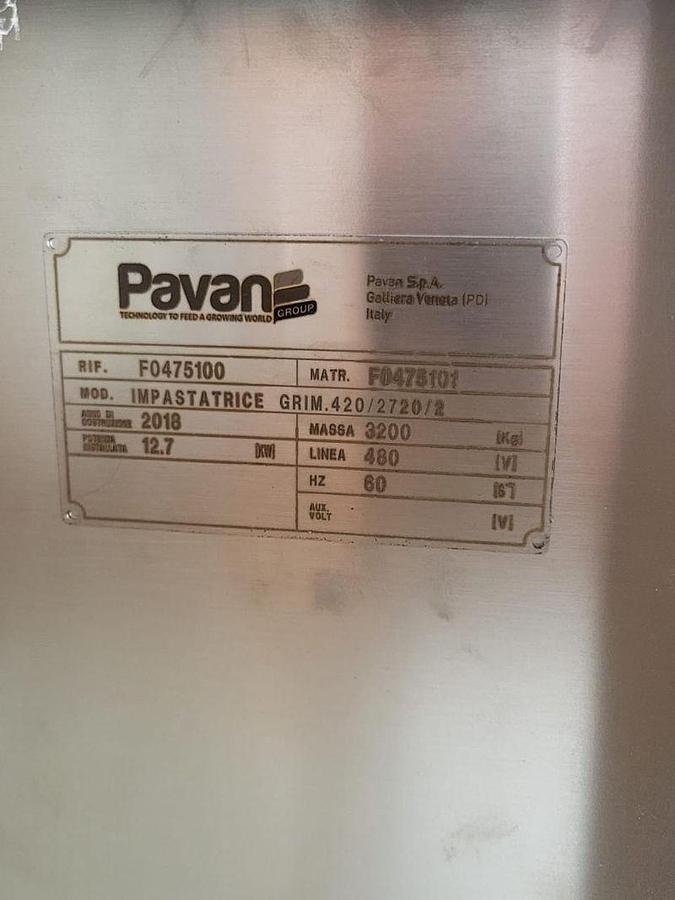

Pavan Continuous Mixer Model: IMPASTATRICE GRIM.420 /2720/2

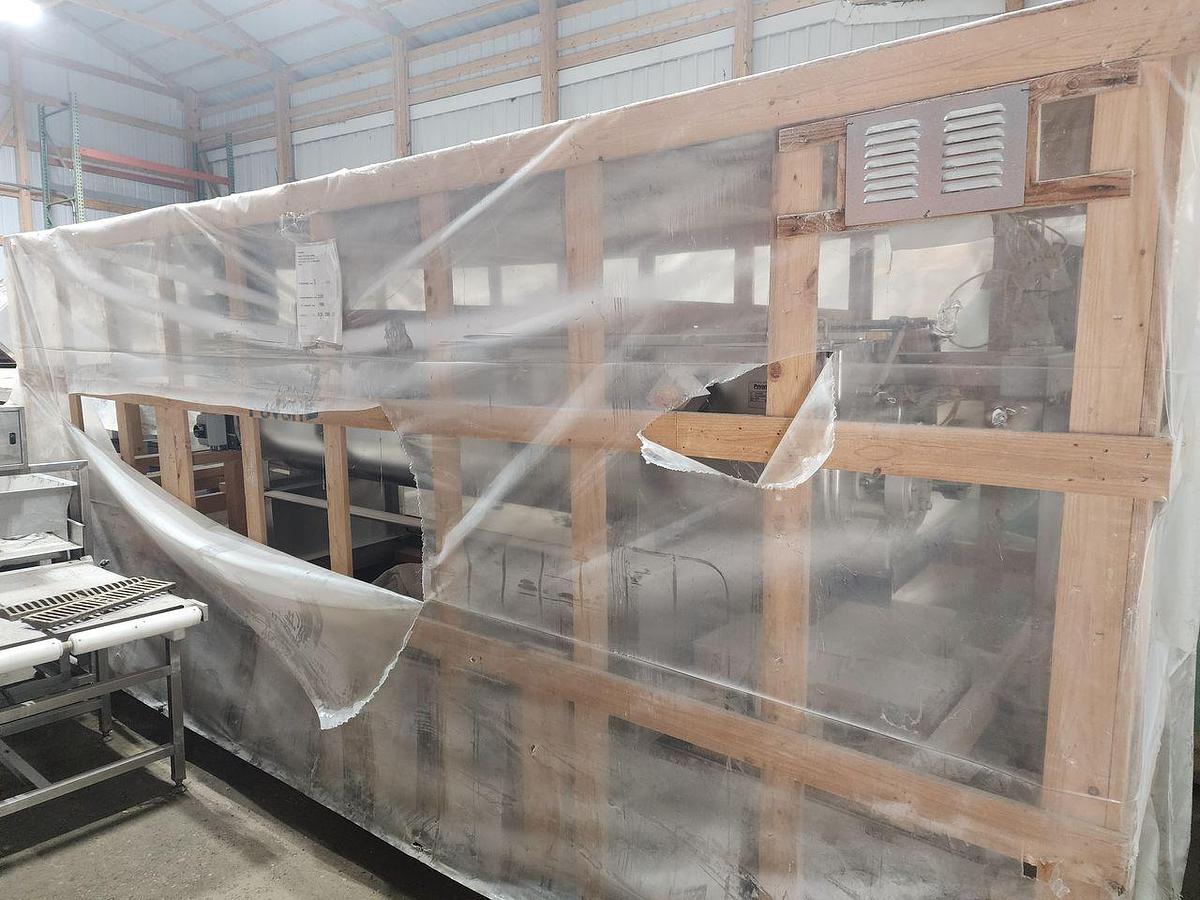

New in 2018 & Never Installed still in crates.

AUTOMATIC MIXER

MIXER MOD. GRIM420/2720/2

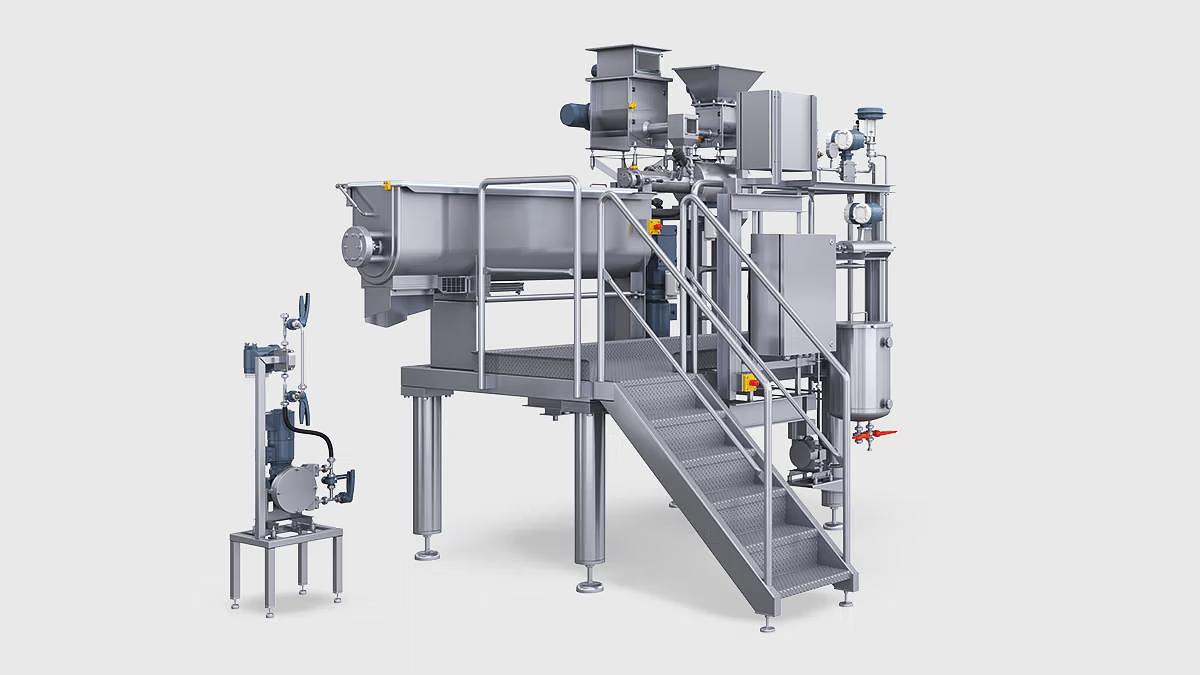

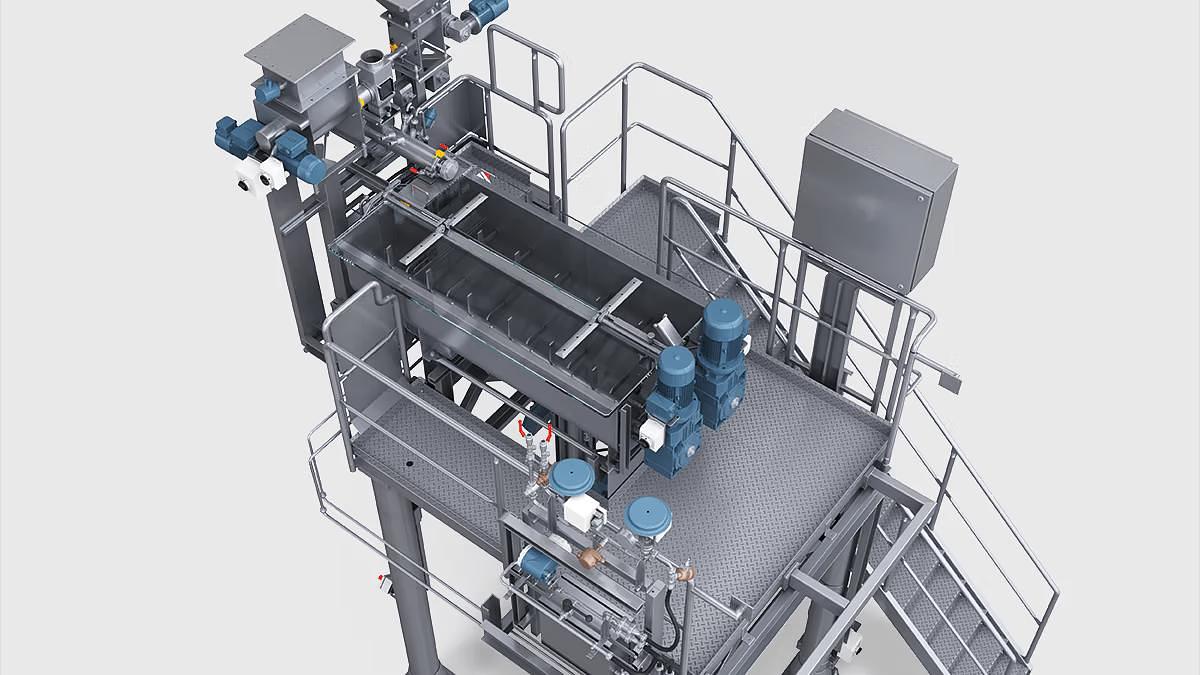

CONTINUOUS MIXER IN STAINLESS STEEL MOD. GRIM420/2720/2 FOR THE PRODUCTION OF 3.300 lb/h OF DOUGH WITH A MIXING TIME OF 15 MINUTES, COMPOSED OF A FLOUR DOSER, A DOSER FOR LIQUID INGREDIENTS, A PREMIXER, 2 MIXING TANKS WITH DOUGH DISCHARGE SHUTTER AND AN ELECTRIC CONTROL PANEL EQUIPPED WITH A PLC UNIT.

Industrial size mixer for the continuous production of dough.

The mixing tanks are entirely built in stainless steel and are sized to guarantee an optimal an mixing time for a homogeneous mixture.

Technical and construction features:

Supporting structure, handrail and access ladder in stainless steel.

Step-over surface in embossed aluminum.

Volumetric type, continuous flour doser consisting of a homogenising reel in stainless steel and a dosing screw. Flow rate variation by means of a frequency converter. The flour receiving hopper is equipped with level a sensor.

Water doser equipped with a flow meter, modulating electropneumatic valve and pressure regulator.

Single-shaft centrifugal premixer installed between the dosers and the mixer ensuring a homogeneous hydration and a uniform distribution of flour and liquid ingredients, thus improving the quality of the dough.

The premixer is composed of an external cylinder containing a rotor, which has an initial screw-shaped section and a section with paddles. The premixer can be opened and the rotor can be easily extracted for washing purposes.

Was $750k new

Two single-shaft mixing tanks in stainless steel, with rounded corners and accurate surface finish.

Plastic lid with water-tight magnetic safety sensors.

Paddle shaft in stainless steel with supports detached from the mixing tank. Sealing rings composed of two parts for easy replacing.

Orientable paddles in stainless steel with conical joint.

The shaft is driven by a gearmotor with direct drive.

The dough is discharged by a stainless steel shutter driven pneumatically.

Electric plant including motors and electric controls wired in the machine up to outer connections.

Electric control panel in stainless steel installed on the machine and including a PLC unit.

REVERSIBLE BELT CONVEYOR MOD. BC400/2500

BELT CONVEYOR WITH REVERSIBLE DRIVE MOD. BC400/2500, WIDTH 400 mm, LENGTH 2.500 mm.

This piece of equipment transfers the dough from the mixer to the kneader-sheeters.

Technical and construction features:

Stainless steel structure.

Closed-ring type, concave belt made of plastic material, suitable to convey food products.

Drive and pull rolls made of food grade plastic material.

Reversible drive with gearmotor.
