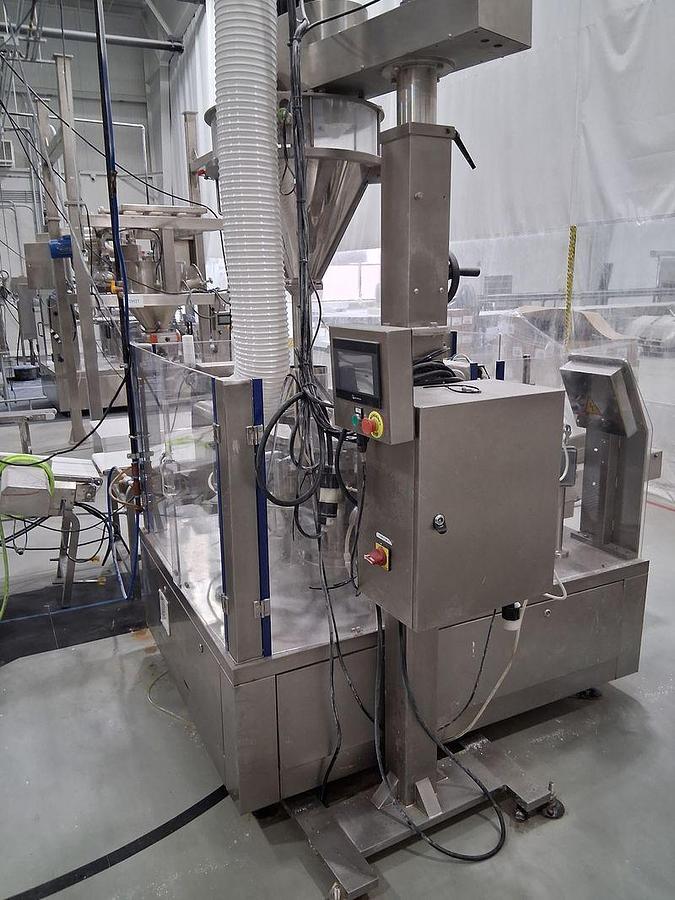

AFE PREMADE POUCH BAGGER FOR POWDERS

Specification:

a.         Six/Eight position packing Machine.

b.        Is equipped with an automatic diagnostic & safety alarm system, to ensure personal safety and reduces material loss.

c.         Can be equipped with a remote diagnostic system to help the customer troubleshoot any issues.

d.        Can be equipped with a self-lubricating system, prolonging the mechanism’s life, and reduces labor cost.

e.         Is equipped with a pouch width adjusting mechanism, unit can be converted to different pouch sizes by just one button in a few seconds.

f.          Unit is manufactured by a strict manufacturing process, most components are provided by international top brands.

g.         Comply with International Safety & Hygienic Regulations, each unit shall pass safety and proper  function testing.

Driver Mechanical transmission (CAM gear lever full mechanical mode)

Application Granules, powder, soup, hot pot base, sesame paste, peanut butter, chili sauce, etc.

Pouch type Flat bag, stand bag, zipper bag, etc.

Packing speed 39-40 bags/min (depends on the material and bag)

Procedure 1.Upper bag 2. Reserve space. 3.Open bag, hold bag. 4. Unloading one. 5.Unloading two. 6. Straighten. 7. Sealing one. 8. Sealing two. Bag size(L) 100-350mm (W) 100-230mm

Sealing One-time sealing, secondary sealing and shaping to ensure neat and beautiful sealing

Pouch type Flat bag

Air consumption 0.4m3 /min

Power voltage 5.0KW/ 220V/60HZ/3ph

Machine Dimension L1650*W1330*H1450

Host weight 1.25T

Usage environment Room temperature 10-40 degrees Celsius，30-90%RH, no dew, no corrosive gas, no dust and other harsh environments.

Features:

This type can do measuring and filling work. Due to the special professional design, it is suitable for the fluidic or low-fluidity materials, like milk powder, Albumen powder, rice powder, coffee powder, solid drink, condiment, white sugar, dextrose, food additive, fodder, pharmaceuticals, agriculture pesticide, and so on.

a.      The hopper can be washed easily without tools.

b.      Servo motor drive screw.

c.       Stainless steel structure

d.      Include handwheel of adjustable height.

e.      Replacing the auger parts, it is suitable for material from super thin powder to granules

Hopper 45L

Packing weight 100 ~ 2000g

Packing Accuracy <100g, <±2%;100 ~ 500g, <±1%;＞500g, <±0.5%

Filling speed 40 ~ 120 times / min

Power supply 3P AC220V/60Hz/3PH

Total power 1.9Kw

Total Weight 200kg

Dimension 1060×600×1100mm

Hopper 45L

Packing weight 100 ~ 2000g

Packing Accuracy <100g, <±2%;100 ~ 500g, <±1%;＞500g, <±0.5%

Filling speed 40 ~ 120 times / min

 Power supply 3P AC208V ~ 415V 50/60Hz

 Spiral conveyor

This conveyor is suitable for multiple powdery type products. Works to feed the machine, the product feeding of the conveyor is controlled to retain the product level in the product cabinet. And the machine can be used independently. All parts are made of stainless steel except the electromotor, bearing and support frame.

a. Uses double electromotors: feeding motor & vibrating motor, both separately controlled.

b. Product funnel is design to be vibratile, which helps to avoid product blocking and improve the adaptation of different products.

c. Product Hopper can separate from the tube for easy assembly.

d. Special anti-dust design to protect bearings from dust.

e. In order to help with machine cleaning, he following functions are added: auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel, auger can be disassembled for washing

Capacity 5 cubic meter per hour

Hopper volume 230L

Diameter of the spiral 114mm

Power supply 3P 220V/60HZ

Total power 1.5KW

Hopper dimension L1100*W860*H900mm

Weight 180kg

Height from discharge mouth to floor 1800mm
